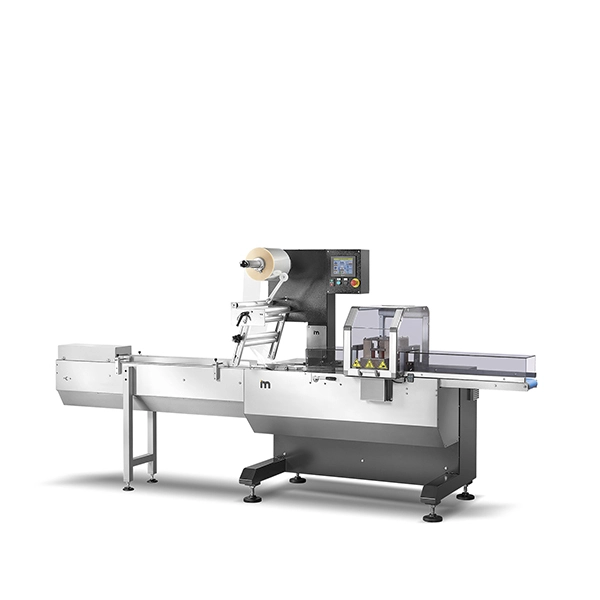

Gami - Horizontal Wrapper

Horizontal flow wrapping machine  -Top Film Reel, with rotating sealing
system, suitable for thermo-sealable films (PP).

Features:
– Painted main frame
– In feed pusher conveyor 1600 mm.
– 250mm wide product feeding pushers in plastic material suitable for food products
– 460 mm. wide film reel holder at the top
– Universal forming tunnel, where width and height are manually adjustable
– 200 mm. wide single rotating sealing bar with permanent heating head, controlled by servomotor
– Fin seal unit independently controlled composed by:
“ two pre-heated wheels to pull the film,
“ two sealing wheels
“ two folding wheels
– Safety plastic protections with safety sensors
– Independent exit conveyor controlled by dc motor
– Servomotor control for the 3 motorizations of the machine:
“ cross sealing head rotation;
“ fin seal head
“ in feed conveyor
– Touch screen
– Electrical cabinet inside the main frame
– Pneumatic Components : Festo Pneumatic
– Compliance to all CE regulations
– Compressed air 6 Bar
– Power Supply: 3P – to suit local supply
