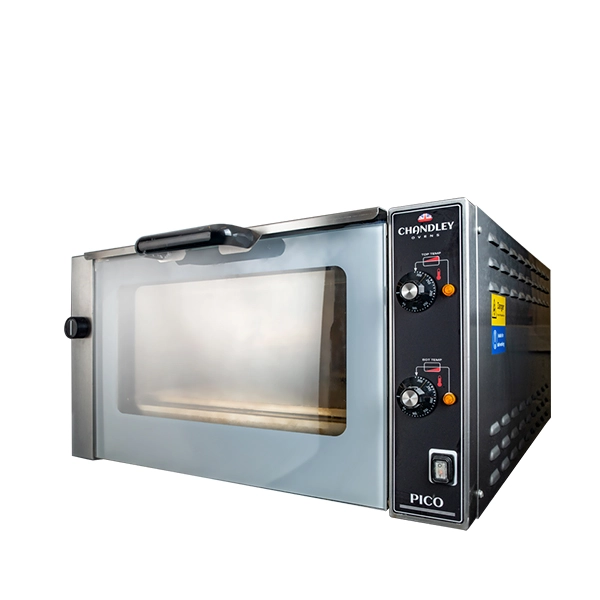

Chandley Ovens - Pico PM Oven

Machine Number: NA

Description

The Chandley ‘Pico’ Oven has been designed for the artisanal sourdough bread baker operating in limited space.
Similar to the oven’s big brother – the ‘Pico Plus’ – it is typically purchased by someone looking to increase throughput significantly, and improve baking results to a professional level.
The oven’s unique, market-proven design makes the oven arguably the market-leading oven in this compact stone sole oven category.



Pico Oven Key Features:

-18.5 x 15” baking stone

-Single phase power is required only, and so the oven is suitable as a home bread oven. Electrical: AC – 220/240v – SINGLE PHASE – 60Hz – 2.47Kw

-The fastest heat-up time on the market of approx 25 mins, with a low recovery time for subsequent batches – allows for many more baking batches per shift, increasing throughput.
Competitor ovens in this category take approx 120 minutes to heat up each shift.

-The lowest entry point cost on the market.

-Chandley ovens have been building ovens for nearly 80 years, and this oven has been manufactured in an ISO 9001 facility that underlines
the superior build quality of Chandley Ovens.

-7.6” (195mm) baking chamber height.

Built-in steam introduction and evacuation (without opening the door). No steam tray accessories are required as built into the oven under the stone. Fully adjustable steam vent.

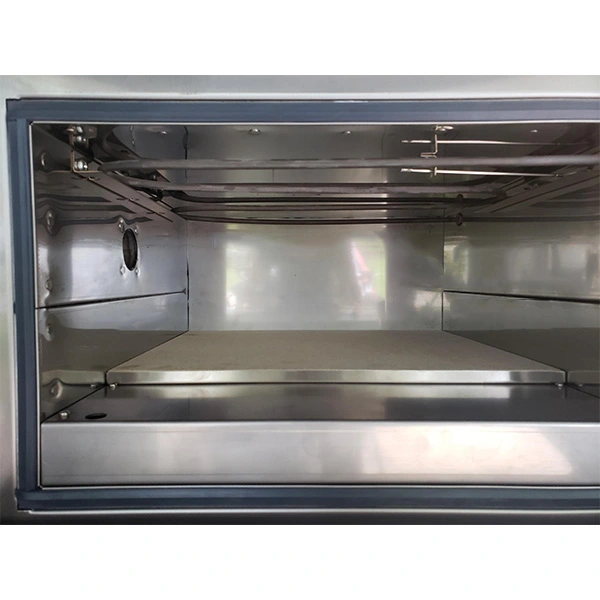

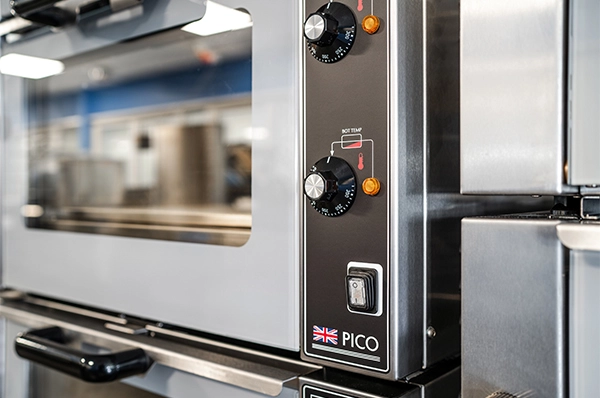

-A premium ceramic baking stone, with Independent top and bottom temperature control, offers fantastic control over the baking process.

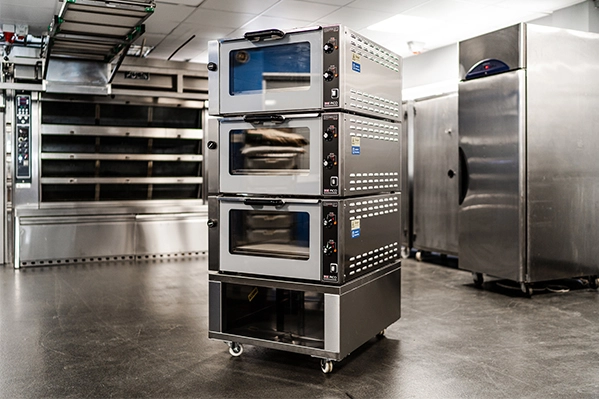

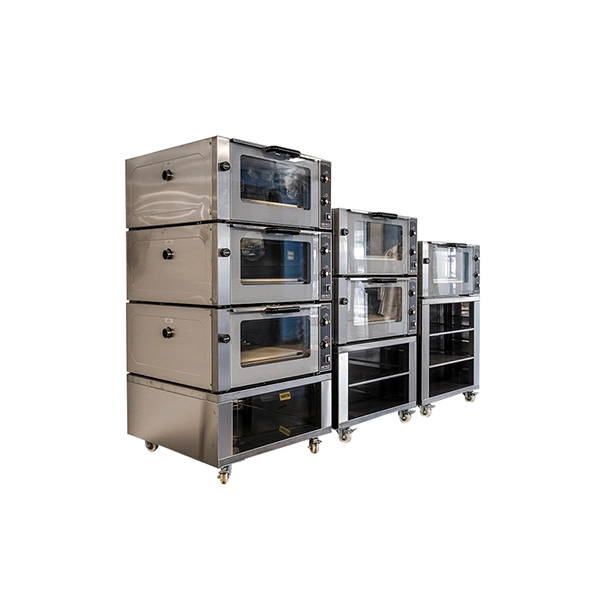

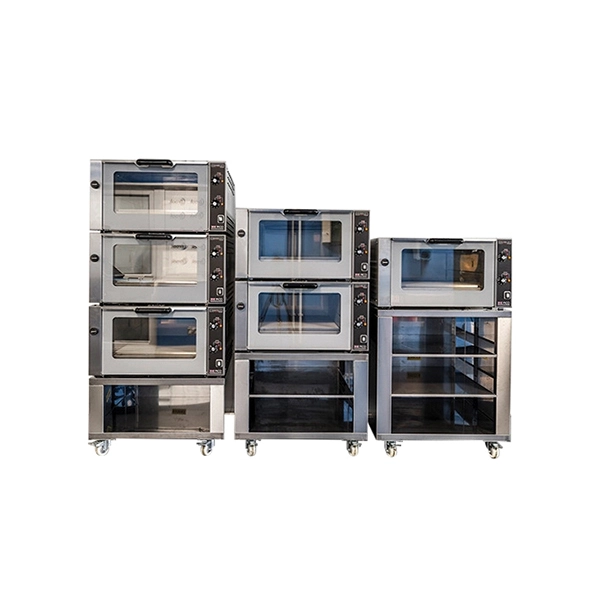

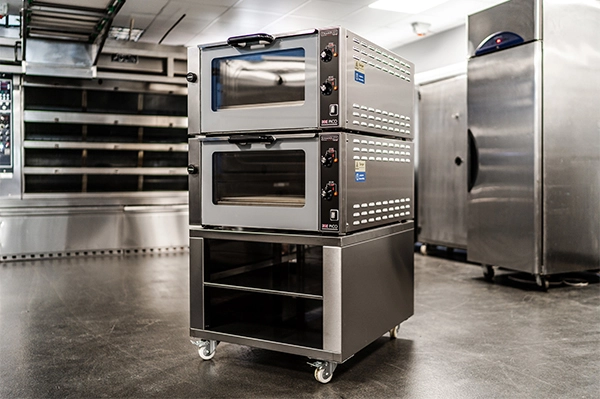

-Small footprint and modular. The ovens can be stacked on top of one another (up to three units high). This modular aspect allows you to build your oven capacity as your business grows.

-Max temp approx 320oC / 608oF (dependent on environment).

-The Pico model accepts half-size 18×13” pans.

-This oven has been deliberately designed to be as low maintenance as possible and to give you hours of hassle-free baking, day after day.

-Modular in design – in the unlikely event an oven chamber does go down – you still have other operational, siloed units – unlike all other competitor models in the marketplace.

-The oven is available in a smaller size if your space is limited – Model PICO.



Note:

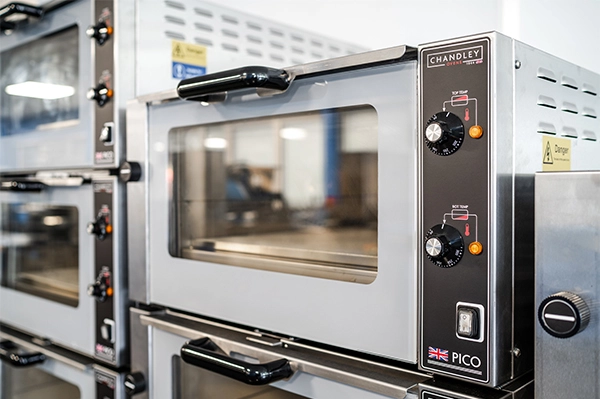

Imagery and video displayed are of the ‘Pico Plus’ Oven – Identical in style to the ‘Pico’ oven, but with different body lengths. Please see the technical section below for dimensions.

To truly appreciate the Chandley Oven – please take the time to compare the top 5 sourdough bread ovens in world by clicking the link below:











Sales Video



Technical

Pico technical data:

-Oven dimensions LxWxH: 31.1 x 24.8 x 16.3” (790 x 630 x 415mm)
-Oven weight: 110lb (50kg)
-Electrical: AC – 220/240v – SINGLE PHASE – 60Hz – 2.47Kw
-18.5 x 15” baking deck surface

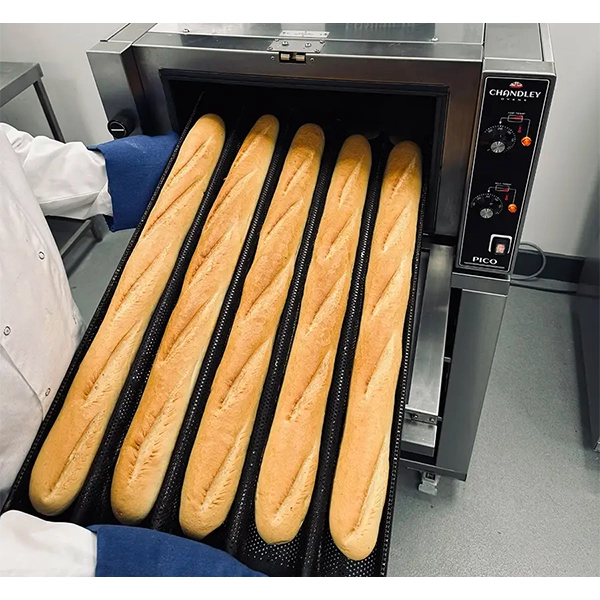

-Capacity illustration – 4x baguettes; or 3x 1000g loaves; or 4x 600g loaves
-Accepts std US half-size pans 18×13”
-The power cord is approx 118” long
-UKCA certified





FAQs:
-Yes, Picos can be stacked on top of Pico pluses if required.
-Our recommendation on the water to be added to the steam system is 150ml on pico plus and 75ml on pico.
-The oven is delivered with a power cord, but no plug. We advise a suitably qualified electrician to be employed to ensure the outlet and plug are suitable for this deck oven.

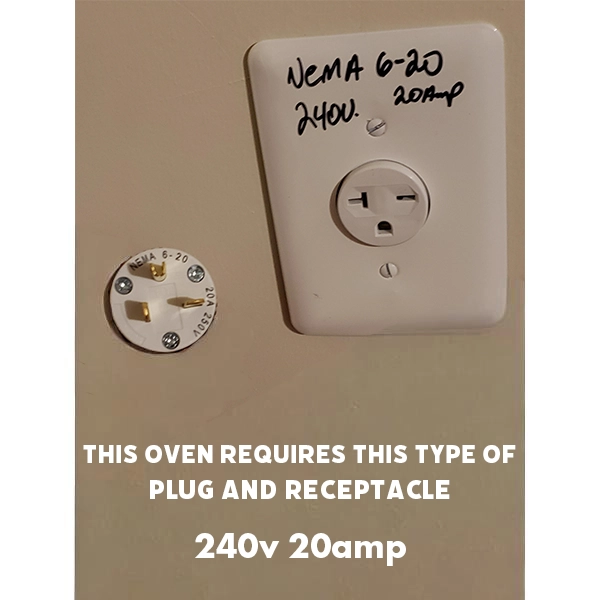

-Electrical plug and outlet: You will require a NEMA 6-20P Plug and a NEMA 6-20R receptacle.
-The oven does not require a cold water feed. Water is manually placed into the built-in steam system pre-bake.

-The oven is designed to allow steam to lightly percolate through the vent at all times. When opening the vent fully more steam will evacuate the internal chamber. This design feature
accommodates a ‘well sealed’ oven….steam has to be allowed to slowly percolate out somewhere to keep internal pressures down.

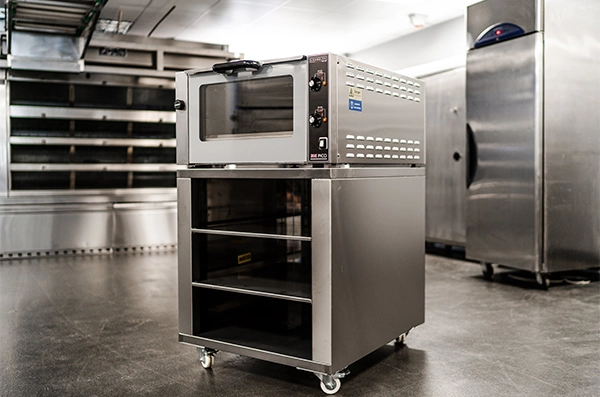

-This oven can be sited on top of a robust s/steel workbench as well as on a mobile stand that we also provide.

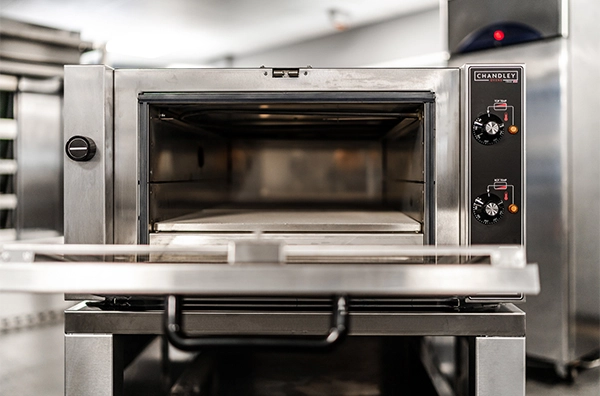

-There is no internal baking chamber light bulb. It is not required due to the large glass door that allows a lot of light to enter.
