ISCA - Bakery mixing bowl tipper
Machine Number: NA
Description

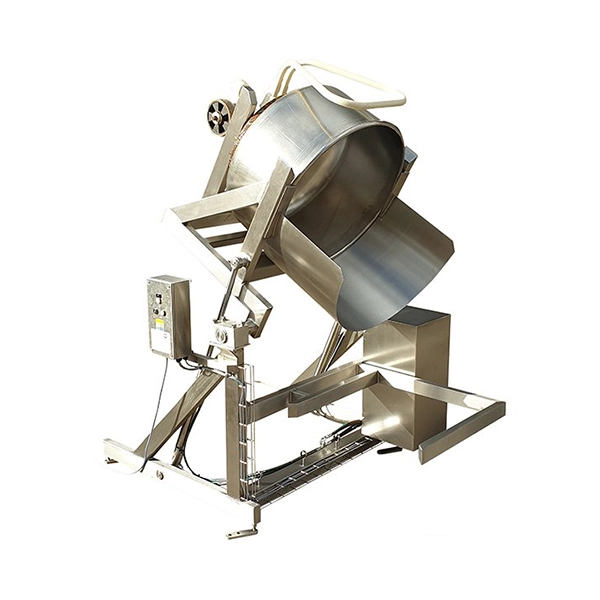

A heavy-duty bakery mixing bowl tipper built to the highest safety and hygiene standards. Customization is available.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Suitable for bakery mixing bowls (removable bowls from spiral mixers)
-Lift height 39.3” (1000 mm)
-Lift capacity 1100 lb (500 kg)
-Tipping angle 120 degrees (30 degrees past horizontal)
-Tipping chute fitted as std
-Machine handing – Right hand side
-Fixed base arrangement
-304 stainless steel
-Welded construction throughout
-Hydraulic power pack
Videos
Technical
-Lift height 39.3” (1000 mm)
-Lift capacity 1100 lb (500 kg)
-Tipping angle 120 degrees (30 degrees past horizontal)
-German SEW motor
-Certification – UKCA
Customization options (please ask on our inquiry form):
-Guarding
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
