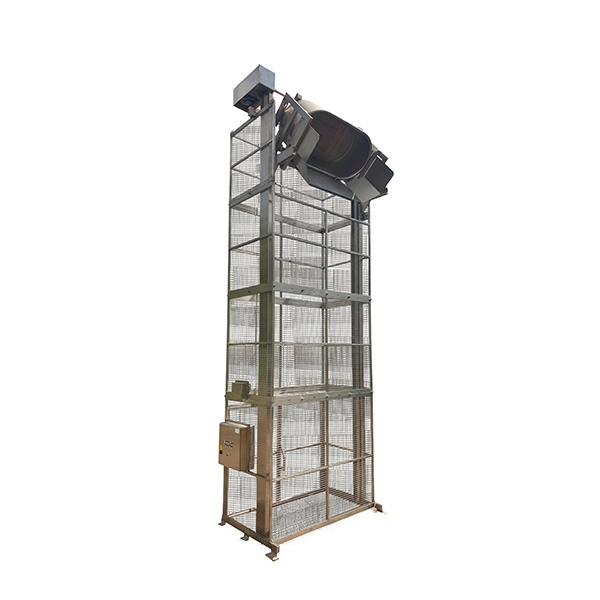

ISCA - Dough Trough Hoist
Machine Number: 1140
Description
The Dough Trough Hoist is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Suitable for dough troughs of various sizes
-Lift height
-Lift capacity
-Overall height
-Maximum headroom
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
Technical
-Controls/orientation – Hold to run push buttons / Right-hand side
-Stainless steel – AISI 304
-Lift height 20.6′ (6320 mm)
-Lift capacity 2970 lb (1350 kg)
-Overall height 27.6′ (8455 mm)
-Tip angle 140 degrees
-Machine handing – Right-hand side
-Maximum headroom 29.5” (9000 mm)
-Mains supply as std – 480v 3PH 60Hz – Grounded
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min (6.4 m/min)
Customization options (please ask on our inquiry form):
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
