ISCA - Dough Tub Dumper

Dough Tub Dumper
Dough Tub Dumper

Machine Number: 1175

Request A Quote Sell Similar Item

Description

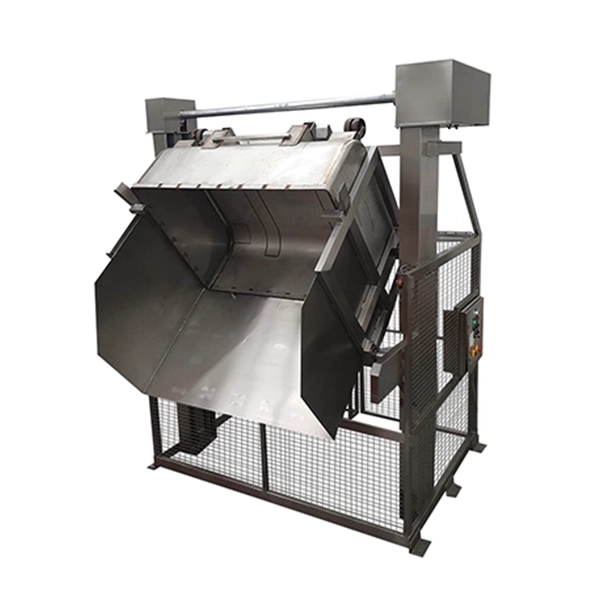

ISCA’S Dough Tub Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard

Technical

-Capacity – 3968.3lbs (1800kgs)
-Tip height -41.3in (1050mm)
-Tip angle – 130 degrees
-Overall height – 140.1in (3560mm)
-Machine height – Left hand
-Maximum headroom – 204.7in (5200mm)
-Tipping chute – Yes, fitted to lift carriage
-Container description – HS3 mixer tub
-Base arrangement – Bolted to the floor
-Control circuit – 24Vac
-Electrical rating – IP65
-Limit switches – telemecanique
-Gearbox details – SEW Eurodrive
-Lift chain – 1″ Duplex
-Tensile strength – 26455.4lbs, 13227.7lbs (12000kgs, 6000kgs)
-Tension chain – 1″ simplex
-Lift speed – 21 feet/Minute (6.4 meters/Minute)



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
