ISCA - Dough Tub Tipper

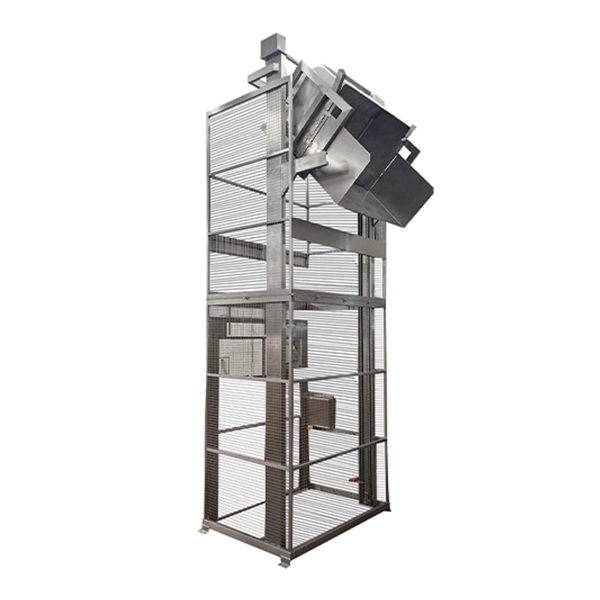

Dough Tub Tipper
Dough Tub Tipper

Machine Number: 1176

Request A Quote Sell Similar Item

Description

ISCA’S Dough Tub Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard



Technical

-Capacity – 308.6lbs(1400kgs)
-Tip height -168.7in (4285mm)
-Tip angle – 140degrees
-Overall height – 236.2in (6600mm)
-Machine Handing – Left hand
-Maximum headroom – 288.5in (7330mm)
-Tipping chute –
-Container description – Dough tub 65.7inx42inx35in (1670mmx1069mmx889mm H)
-Base arrangement – Bolted to the floor
-Control circuit – 24Vac
-Electrical rating – IP65
-Limited switches – Telemecanique



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
