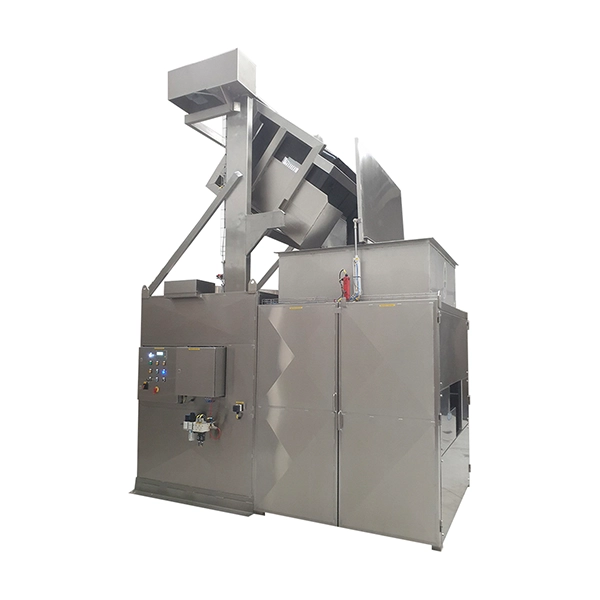

ISCA - Box dumper

Name: Box dumper
Brand: ISCA
SKU: 1172
Price: POA

Box dumper

Machine Number: 1172

Request A Quote Sell Similar Item

Description

ISCA’S Box Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.

Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option

Technical

-Capacity – 661.3lbs (300kgs)
-Tipping height – 110.2in (2800mm)
-Tipping angle – 130 degrees
-Overall height – 183in (4650mm)
-Machine handing – Right hand
-Maximum headroom – 192.9in (4900mm)
-Tipping chute – Yes fitted to lift carriage
-Container description – Pallet Box 47.2in x 39.3in x 47.2inH (1200mm x 1000mm x 1200mm H)
-Base arrangement – Bolted to the floor
-Control circuit – 24Vac
-Electrical rating – IP65
-End of travel limits – Dual limit switches
-Gearbox deatil -SEW Eurodrive
-Lift chain – 1 ” simplex
-Tensile Strength – 13227.7lbs, 6613.8lbs (6000 Kgs, 3000 Kgs)
-Tension chain – ¾” Simplex
-Lift speed – 20.9ft/minute (6.4meters/minute )

Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
