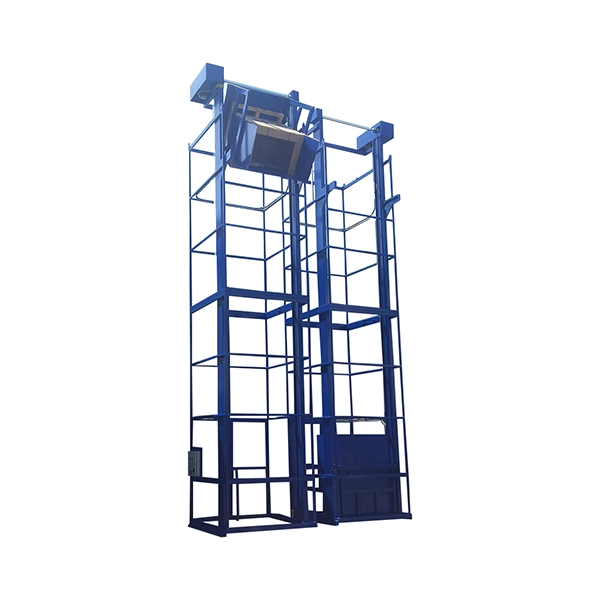

ISCA - Combo Bin Dumper
Machine Number: 1177
Description
ISCA’S Combo Bin Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard
Technical
-Capacity – 2204.6lbs (1000kgs)
-Tipping height – 275.9in (7010mm)
-Tipping angle – 130 degrees
-Overall height – 367.7in (9340mm)
-Machine handing – Right hand
-Maximum headroom – 393.7in (10000mm)
-Tipping chute – Yes, fitted to lift carriage
-Paint color – Wendt Blue: Sherwin Williams RAL 5002
-Container description – Gaylord Box
-Base arrangement – Bolted to the floor
-Control circuit – 24Vac
-Limit switches – Telemecanique
-Gearbox deatil – SEW Eurodrive
-Lift chain – 1″ simplex
-Tensile strength – 13227.7lbs, 6613.8lbs(6000kgs, 3000kgs)
-Tension chain – ¾” simplex
-Lift speed – 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
