North America

ISCA - Combo Box Dumper

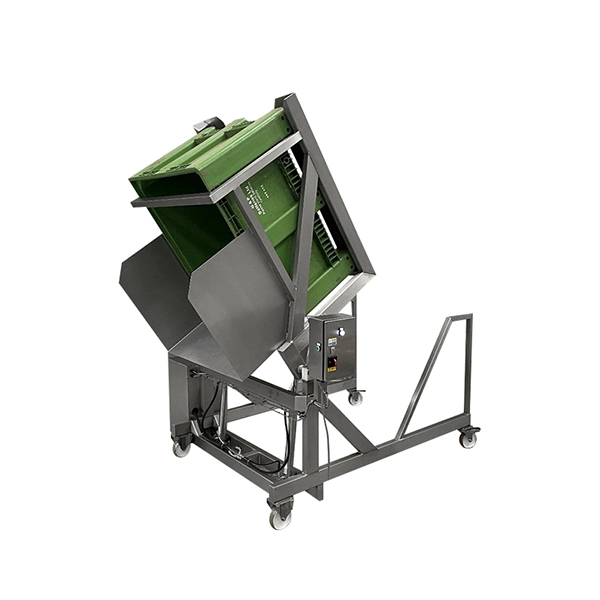

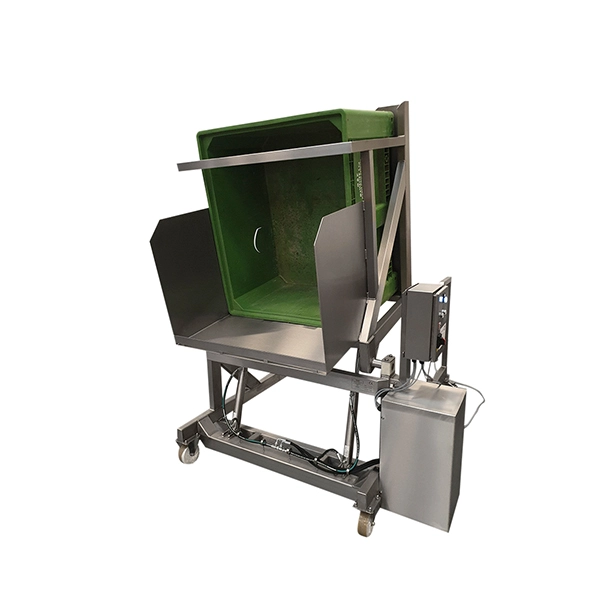

Combo Box Dumper combo-box-tipper
Combo Box Dumper combo-box-tipper

Machine Number: 1154

Request A Quote Sell Similar Item View 3D model

Description

The ISCA Combo Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard model features:

-Suitable for combo boxes, vats, tanks, gaylords
-Tipping height 39” (1000 mm)
-Tip angle 30 degrees past horizontal
-Lift capacity 2200 lb (1000 kg)
-Machine handing – Right hand side
-304 stainless steel
-Welded construction throughout
-Hydraulic powerpack





Videos

Technical

-Controls/orientation – Right-hand side
-Stainless steel – AISI 304
-Tipping height 39” (1000 mm)
-Lift capacity 2200 lb (1000 kg)
-Base – Mobile
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Hydraulic powerpack



Customization options (please ask on our inquiry form):
-Wire mesh guard
-Light curtain entry guarding
-Tip height, tip angle, lift weight capacity, box size lifting cradle

-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
