ISCA - Combo Dumper
Machine Number: 1178
Description

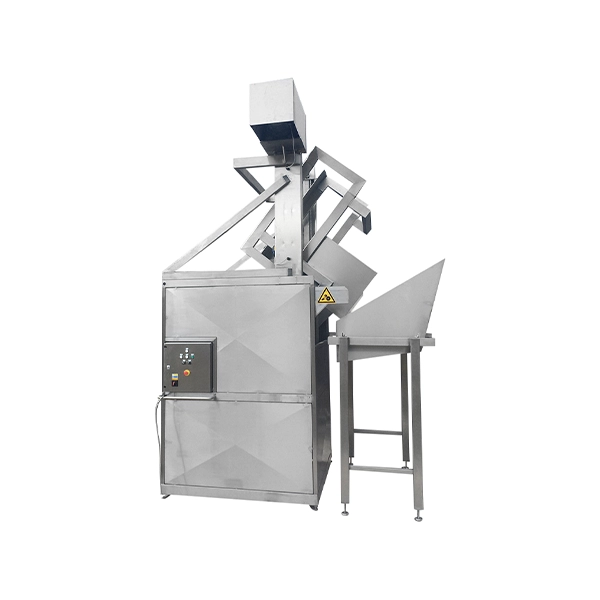

ISCA’S Combo Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard
Technical
Capacity – 1653.4lbs (750kgs)
-Tipping height –70.8in (1800mm)
-Tipping angle – 130 degrees
-Overall height –154.1in (3916mm)
-Machine handing – Left hand
-Maximum headroom – 192.9in (4900mm)
-Tipping chute – Yes
-Container description – Dolaf Bin
-Base arrangement – Bolted to the floor
-Control circuit – 24Vac
-Electrical rating – IP65
-Limit Switches – Telemecanique
-Gearbox deatil – SEW Eurodrive
-Output R.P.M – 28 R.P.M.
-Ratio – 50:1
-Load/Lift/Tension chain – 1 ” simplex
-Tensile Strength – 13227.7lbs (6000 Kgs)
-Lift speed – 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
