ISCA - Combo Dumper

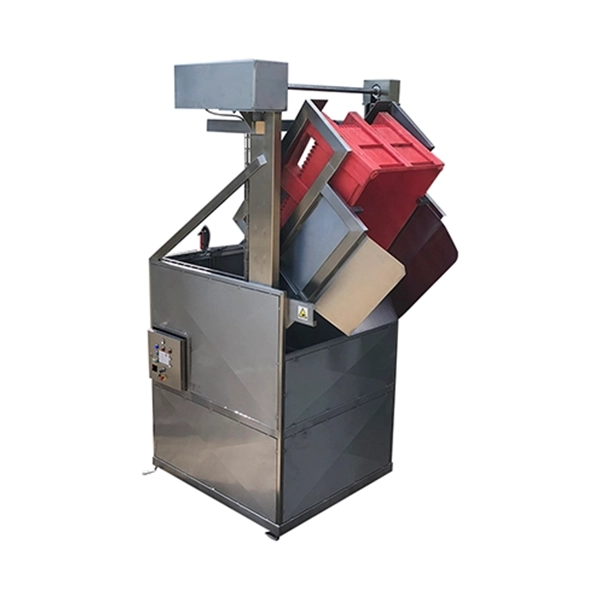

Combo Dumper
Combo Dumper

Machine Number: 1179

Request A Quote Sell Similar Item

Description

ISCA’S Combo Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option

Technical

-Capacity- 1322.7 lbs (600kgs)
-Tipping Height- 7 in (180mm)
-Tipping angle- 130 degrees
-Overall height- 154.7 in (3930mm)
-Machine handling- Left hand
-Maximum headroom- 177.1 in (4500mm)
-Tipping chute- Yes, Fitted To Lift Carriage
-Container Description- 47.2in L x 39.3in W x 30.7in H (1200mm L x 1000mm W x 780mm H)
-Base Arrangement- Bolted To The Floor
-Control Circuit- 24Vac
-Electrical Rating- IP65
-Limit Switches- Telemecanique
-Gearbox Details- SEW Eurodrive
-Lift chain- 1″ Simplex
-Tensile strength- 13227.7 lbs, 6613.8 lbs (6000kg , 3000kg)
-Tension chain- 3/4″ Simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)





Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
