ISCA - Gaylord Box Dumper

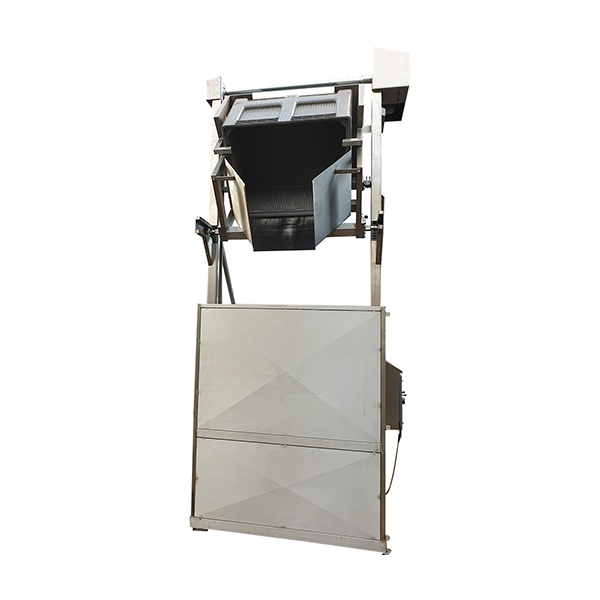

Gaylord Box Dumper
Gaylord Box Dumper

Machine Number: 1181

Request A Quote Sell Similar Item

Description

ISCA’S Gaylord Box Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard

Technical

-Capacity- 881.8lbs (400kg)
-Tipping height- 110.2in (2800mm)
-Tipping angle- 130 degress
-Overall height- 192in (4879mm)
-Machine handing- Left hand
-Maximum headroom- 196.8in (5000mm)
-Tipping chute- Yes, fitted to lift carriage
-Container description- Pallet Box 47.2in L x 31.4in W x 29.1in H (1200mm L x 800mm W x 740mm H)
-Base arrangement- bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- telemecanique
-Gearbox details- SEW Eurodrive
-Load/lift/tension chain- ¾” Simplex
-Tensile strength- 661.3 lbs (3000kg)
-Tension chain- ¾” Simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)





Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
