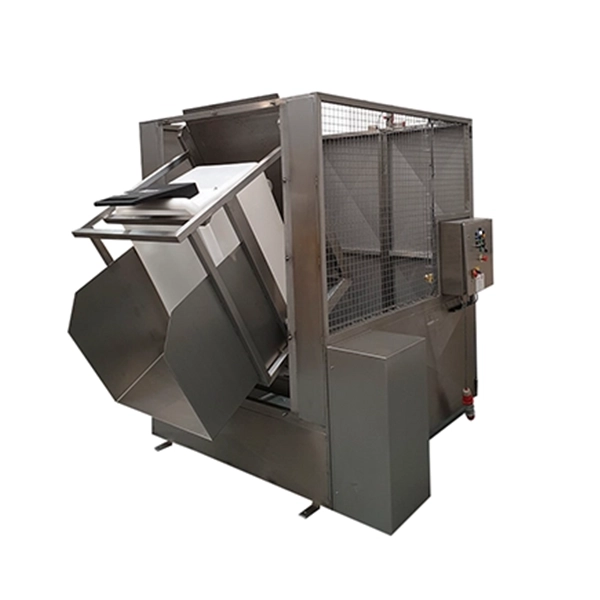

ISCA - Hydraulic Combo Tipper
Machine Number: 1185
Description
ISCA’S Hydraulic Combo Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Dolafs, Palletainers etc
-Tip Heights up to 1500mm
-Lifting Capacity – No Maximum
-Hydraulic or Pneumatic Cylinders Complete with Hose Burst Fuses
-Fully Enclosed Safety Guard Option
Technical
-Lifting capacity- 1102.3lbs (500kg)
-Tipping height- 31.4in (800mm)
-Tipping angle- 120 degrees
-Machine handing- Left hand
-Tipping chute- Yes, fitted to lift carriage
-Container description- Plastic container
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
