ISCA - Pallet Box Dumper

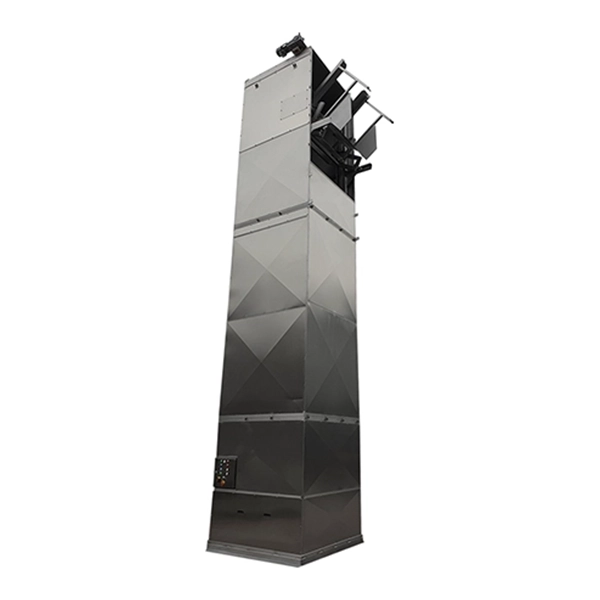

Pallet Box Dumper
Pallet Box Dumper

Machine Number: 1187

Request A Quote Sell Similar Item

Description

ISCA’S Pallet Box Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard

Technical

-Capacity- 1102.3lbs (500kg)
-Tipping height- 299.2in (7600mm)
-Tipping angle- 170 degrees
-Overall height- 428.8in (10892mm)
-Machine handing- Right hand
-Maximum headroom- 43.3in (1100mm)
-Tipping chute- Yes, fitted to lift carriage
-Container description- Pallet box 45.6in x 45.6in x 45.6in H (1160mm x 1160mm x1160mm H)
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Lift chain- 1″ simplex
-Tensile strength- 13227.7lbs, 6613.8lbs (6000kg,3000kg)
-Tension chain- 3/4″ simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
