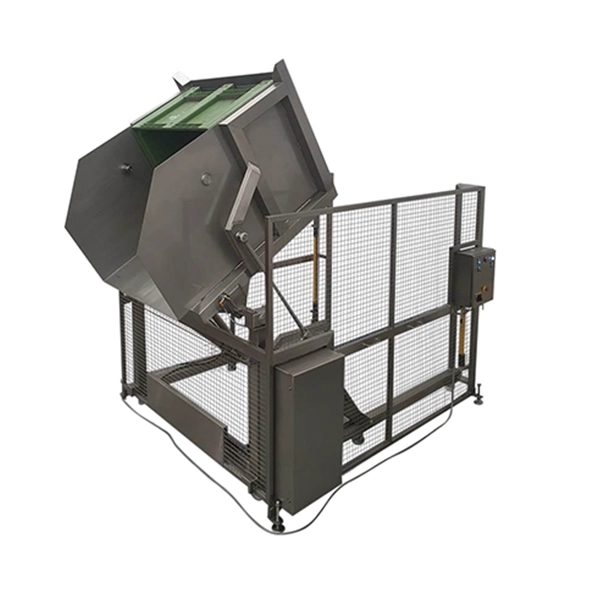

ISCA - Vat Dumper

Vat Dumper
Vat Dumper

Machine Number: 1188

Request A Quote Sell Similar Item

Description

ISCA’S Vat Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Dolafs, Palletainers etc
-Tip Heights up to 1500m
-Lifting Capacity – No Maximum
-Hydraulic or Pneumatic Cylinders Complete with Hose Burst Fuses
-Fully Enclosed Safety Guard Option

Technical

-Lifting capacity- 3306.9lbs (1500kg)
-Tipping height- 57in (1450mm)
-Tipping angle- 120 Degrees
-Machine handing- Left hand
-Tipping chute- Yes, fitted to lift carriage
-Container description- 600 Litre Plastic Container
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
