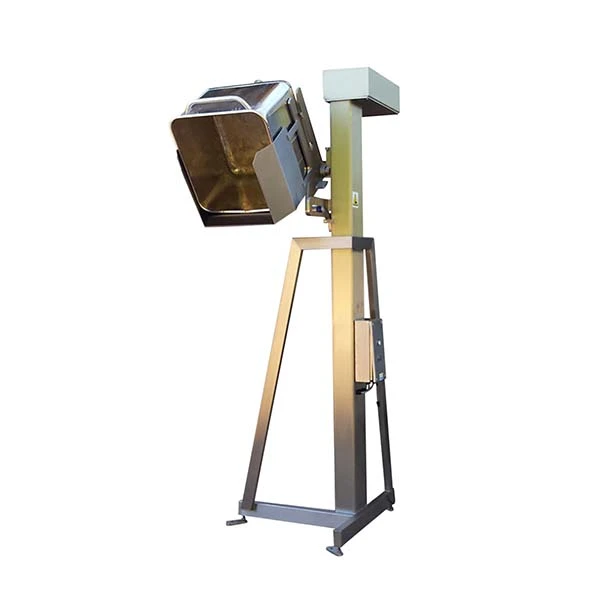

ISCA - Column dumper – Bolt down
Price: $16,995
Machine Number: NA
Description
The Bolt Down Column Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Compatible with 200lb (120l), 400lb (200L) and 600lb (400L) dump buggies.
-The tipping height is adjustable.
-Tip height ‘without’ a chute fitted:
Tip height adjustable range for 400lb bins is – 55 to 90” (in 4” increments)
Tip height adjustable range for 600lb bins is – 47 to 82.7” (in 4” increments)
-Tip height with a chute fitted:
Tip height adjustable range for 400lb bins is – 47 – 82.7” (in 4” increments)
Tip height adjustable range for 600lb bins is – 47 to 82.7” (in 4” increments)
-The machine has a fixed base arrangement
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
-Chute fitted as standard
Videos
Technical
-Controls/orientation – Hold to run push buttons / Right-hand side
-Stainless steel – AISI 304
-Lifting capacity – 660 lbs
-Max tipping height (adjustable) – See description above
-Tipping reach – Customized to your application with a chute if required
-Tipping angle – 135 degrees (45 degrees from horizontal)
-Overall machine height – 127.5”
-Container suitability – Dump buggy 200, 400 + 600lb (or similar container)
-Base – Fixed
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min
-Approx net machine weight – 660 Lb
-German SEW motor
-Certification – UKCA
Customization options (please ask on our inquiry form):
-Guarded
-Mobile base
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
