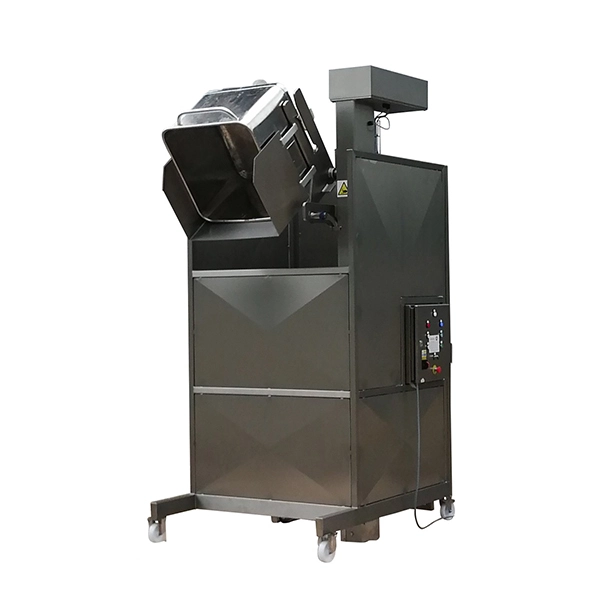

ISCA - Column dumper – Guarded
Machine Number: 1022
Description
The Guarded Column Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Compatible with 200lb (120l), 400lb (200L) and 600lb (400L) dump buggies
-The tipping height is fixed at 73.2” (1860mm)
-The machine is mobile as standard, with fixing brackets provided to fix the column dumper into position if required
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
-Chute fitted as standard
Technical
-Controls/orientation – Hold to run push buttons / Right-hand side
-Stainless steel – AISI 304
-Lifting capacity – 660 lbs
-Tipping height – 73.2” (1860mm)
-Tipping reach – Customized to your application with a chute if required
-Tipping angle – 135 degrees (45 degrees from horizontal)
-Overall machine height – 127.5”
-Container suitability – Dump buggy 200, 400 + 600lb (or similar container)
-Base – Fixed base arrangement
-Overall machine height – 114.9” (2919mm)
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min
Customization options (please ask on our inquiry form):
-Light curtain guard or full perimeter guard
-Mobile base
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
