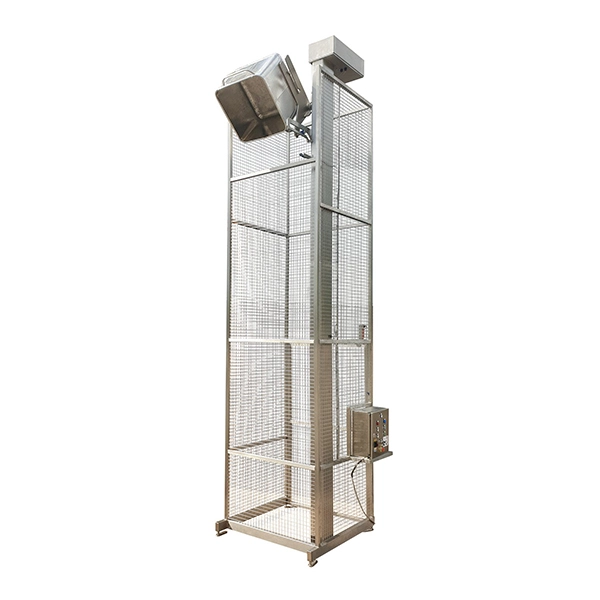

ISCA - Column dumper – High Lift
Machine Number: 1035
Description
ISCA’s High Lift Column Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Trays etc
-Tip Heights up to 2500mm
-Lifting Capacity up to 600Kgs
-Chain or Screw Drive
-Fully Enclosed Safety Guard
Technical
-Capacity- 660lbs (300kg)
-Lift height- 175in (4450mm)
-Overall Height- 214in (5430mm)
-Machine Handing- Left hand
-Maximum Headroom- 236in (6000mm)
-Container description- 400lb (200 liter) dump buggy
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Load/Lift/Tension Chain- 1″ simplex
-Tensile strength- 13227.7lbs, 6618.3lbs (6000kg, 3000kg)
-Tension chain- 3/4″ simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
