ISCA - Dump Buggy 200lb – Detachable Base

Machine Number: 1170

Description

ISCA’s heavy-duty stainless steel Dump buggy is manufactured to the highest possible ‘DIN 9797’ standard and suitable for most standard lifting devices.
Also referred to in the industry as v-edge carts, v-mag carts, vemag carts, vemag buggy, tote bins, euro-style buggies, meat buggy, meat carts, meat trolley or stainless steel buggy – our dump buggies interface with most machines. This includes: standalone dump buggy tippers and tilters, column dumpers, dump buggy scales, dump buggy washing machines, and integrated lifting arms on processing equipment for brands including: Vemag, Handtmann, Seydelmann, GEA Koppens, Hi Tec etc.



Features:
-Heavy-duty walls and a reinforced base plate made from 304-grade stainless steel.
-Continuous welded and beaded construction.
-Rolled edge rim, reinforced with inner solid bar (unlike most competitors’ products).
-Diamond-shaped wheelset for 360-degree movement.
-Lifting lugs as standard – to fit all standard lifting devices.
-Front-mounted drip guard
-Beak tipping v edge as standard.
-Tough and durable white nylon wheels as standard.
-Pushing rear handle as standard.
-Electro-polish finish – inside and out – to facilitate easier product emptying, cleaning, and less adherence to water after washing.
-Non-branded dump buggies available (for resellers)



Buy ISCA Dump Buggies and buy once – these buggies are built to last and built to withstand the harshest of environments. Please do not compare these bins with cheaper imports of inferior gross weight and construction. ISCA supplies end users and re-sellers with the highest quality dump buggies and will not be beaten on price.



Videos

Technical

-Stainless steel – AISI 304
-Walls made from 5/64” (2mm) 304-grade stainless steel
-Reinforced base made from 3/16” (5mm) 304-grade stainless steel
-200lbs / 120l dump buggy dimensions – See drawing attached
-200lbs / 120l dump buggy weight – 66.2lbs / 30kg (+/- 0.2)





Customized options available (please ask on our inquiry form):

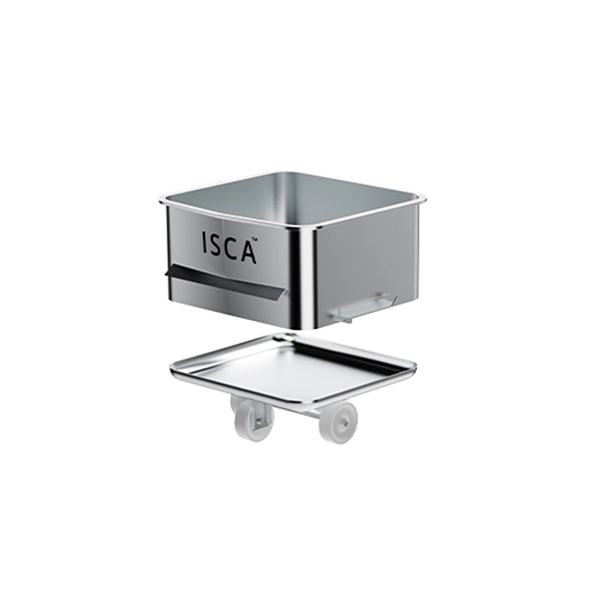

-Detachable base – an ultra-hygienic option
-Wheel color
-Valve drain
-Perforated walls
-Filter inserts
-Extended push handle
-Non-branded dump buggies (for resellers)
