ISCA - Dump buggy lifter tipper
Machine Number: NA
Description

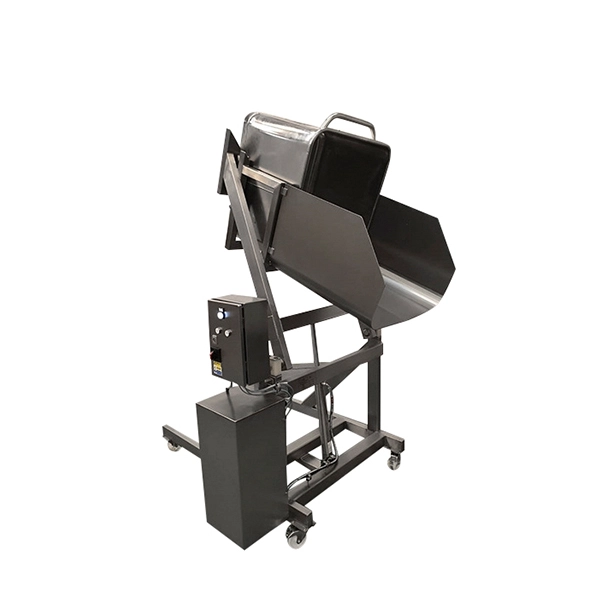

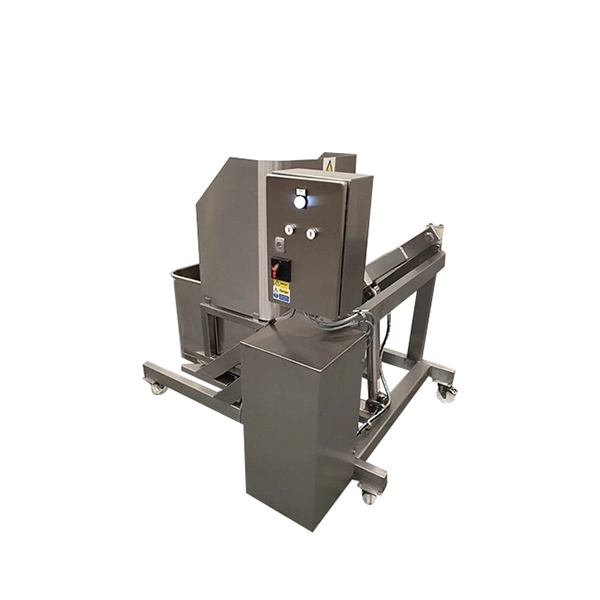

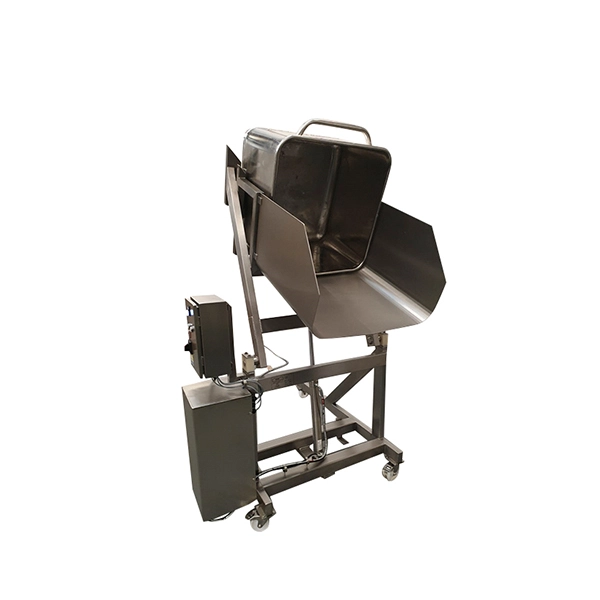

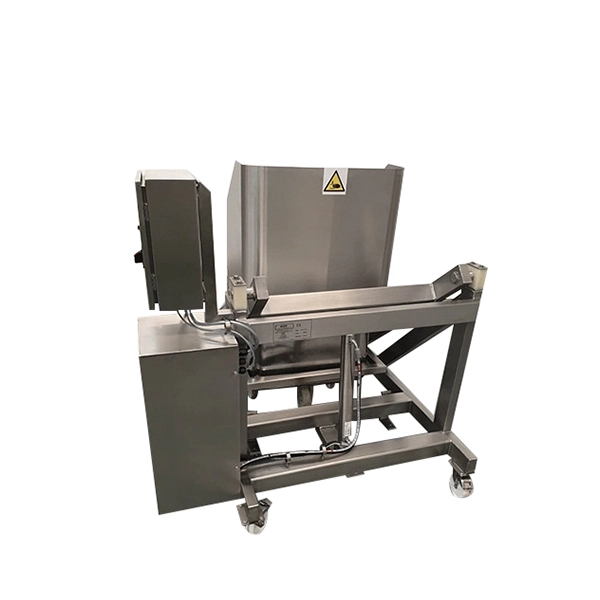

The Universal Dump Buggy Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Compatible with 200lb (120l), 400lb (200L), and 600lb (400L) dump buggies
-The tipping height is fixed at 39” (1000mm)
-Tipping angle = 30 degrees past the horizontal
-The machine is mobile as standard, on two fixed, and two swivel castor wheels
-304 stainless steel
-Welded construction throughout
-Hydraulic power pack (Stainless steel hydraulic cylinder)
-The hydraulic cylinder is fitted with a safety check valve such that even in the unlikely event of a hydraulic hose failure, the raised bin will not fall to the floor
-Chute fitted to the lift carriage as standard
Machine construction overview video:
https://youtube.com/shorts/Kn23cHk17Gs
Videos
Technical
-Controls/orientation – Hold to run push buttons / Right-hand side
-Stainless steel – AISI 304
-Lifting capacity – 660 lbs
-Max tipping height = 39” (1000mm)
-Tipping reach – Customized to your application with a chute if required
-Tipping angle = 30 degrees past the horizontal
-Container suitability – Dump buggy 200, 400 + 600lb (or similar container)
-Base – Mobile base
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Hydraulic power pack
-Certification – UKCA
Customization options (please ask on our inquiry form):
-Guarding
-Fixed base
-Battery driven
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
