ISCA - Dump buggy stacker
Battery powered
Machine Number: 1031
Description
ISCA’s Dump Buggy Stacker is designed for the stringent requirements of hygiene-conscious facilities.

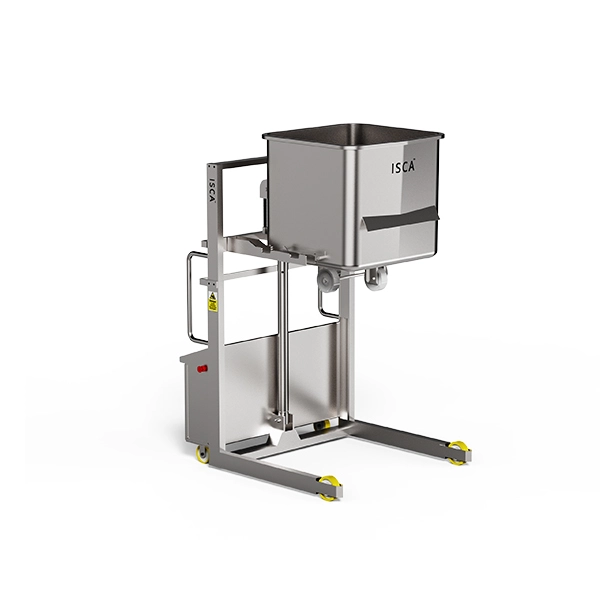

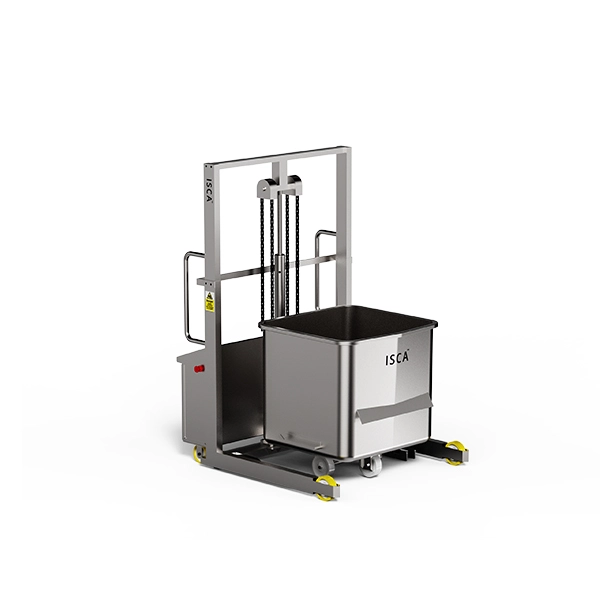

It is used to safely and efficiently lift and position dump buggies onto ISCA dump buggy racking (up to 4 units high) as a space-saving exercise in chillers or production areas.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Battery-powered
-Telescopic mast
-Compatible with 200lb (120l), 400lb (200L) and 600lb (400L) dump buggies.
-Max lift height: Standard stacker = 90” (2286 mm). Extended stacker = 104” (2641 mm)
-Lift capacity 550 lb (250 kg)
-Overall height 111” (2820 mm)
-Mobile
-304 stainless steel
-Welded construction throughout
-Single phase charging unit
Videos
Technical
-Battery powered
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 32 ft/min (10 m/min)
Customization options (please ask on our inquiry form):
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
