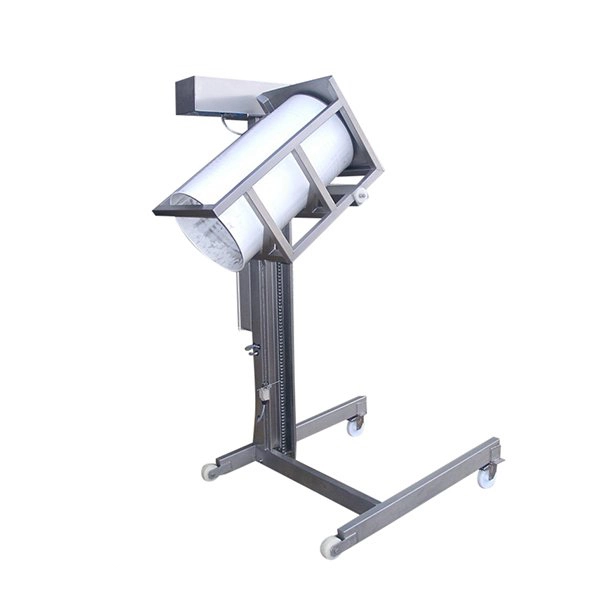

ISCA - barrel dumper
Machine Number: NA
Description
A heavy-duty Barrel dumper designed to the highest safety, and hygiene standards.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Suitable for barrels of various sizes
-Tipping height 62.9” (1600 mm)
-Lift capacity 550 lb (250 kg)
-Overall height 108.6” (2760 mm)
-Machine handing – Right hand side
-Maximum headroom 157.4” (4000 mm)
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
Videos
Technical
-Controls/orientation – Hold to run push buttons / Right-hand side
-Stainless steel – AISI 304
-Maximum headroom 157.4” (4000 mm)
-Mobile base arrangement
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min (6.4 m/min)
-German SEW motor
-Certification – UKCA
Customization options (please ask on our inquiry form):
-Fixed base arrangement
-Guarding
-Battery operated
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
