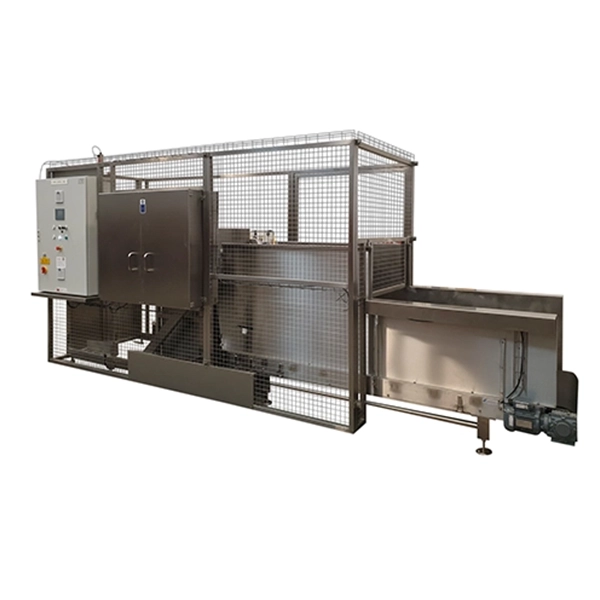

ISCA - Cardboard Package Tipper
Machine Number: 1203
Description
ISCA’S Cardboard Package Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Mail Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for York Containers, Roll Cages or Pallet Boxes etc
-Tip Heights and Lifting Capacity to suit
-Fully Enclosed Safety Guard
Technical
-Lifting capacity- 661.3lbs (300kg)
-Tipping height- 39.3in (1000mm)
-Tipping angle- Maximum 180 degrees, Optimum angle 170 degrees
-Machine handing- Right hand version
-Tipping chute- Yes, fitted to lift carriage
-Container description- Parcel
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-End of travel control- Rotary Position Sensor
-Gearbox details- SEW Eurodrive
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
