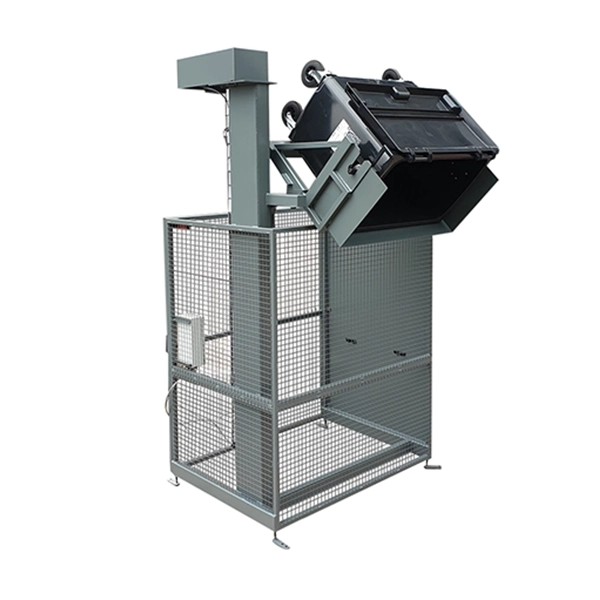

ISCA - Heavy Duty Waste Bin Tipper
Machine Number: 1204
Description
ISCA’S Heavy Duty Waste Bin Tipper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for all sizes of Wheelie Bins
-Tip Heights up to Customers’ Requirements
-Lifting Capacity up to 1000 Kgs
-Chain or Screw Driven Complete with Unique Safety Latch
-Fully Enclosed Safety Guard Option
Technical
-Capacity- 1322.7lbs (600kg)
-Tipping height- 82.6in (2100mm)
-Tipping angle- 135 degrees
-Overall height- 134.8in (3425mm)
-Machine handing- Right hand
-Maximum headroom- 161.4in (4100mm)
-Tipping chute- Yes, fitted to lift carriage
-Container description- 600 liter Waste Bin
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Output R.P.M.- 28 R.P.M.
-Ratio- 50:1
-Load/Lift/Tension chain- 1″ simplex
-Tensile strength- 13227.7lbs (6000kg)
-Lift speed- 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
