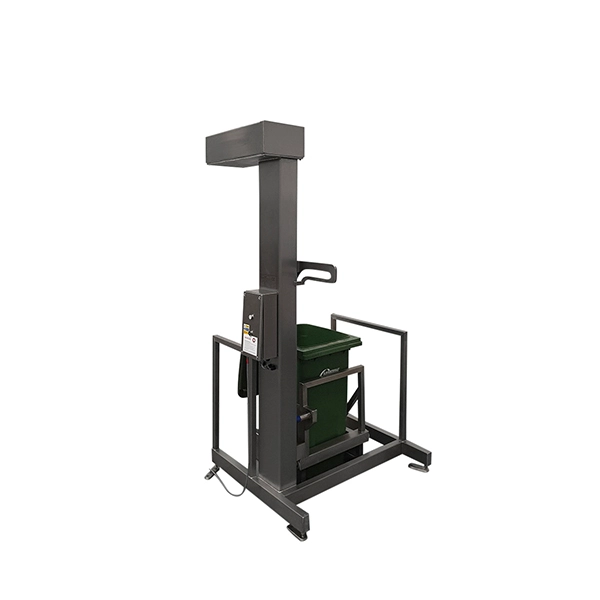

ISCA - Uline Waste Bin Tipper

-Controls/orientation – Hold to run push buttons / Left-hand side
-Stainless steel – AISI 304
-Lifting capacity – 660lb (300kg)
-Max tipping height (adjustable) – 49.2” (1250 mm)
-Tipping reach – Customized to your application with a chute if required
-Tipping angle – 135 degrees (45 degrees from horizontal)
-Overall machine height – 95.7” (2443 mm)
-Container suitability – Uline waste bin
-Base – Mobile base (with fixing brackets on base frame)
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 21 ft/min

Customization options (please ask on our inquiry form):
-Guarded

-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.

• Waste bin tipper sales dwg
• Waste bin tipper 3D interactive pdf (3D viewing software is required)
