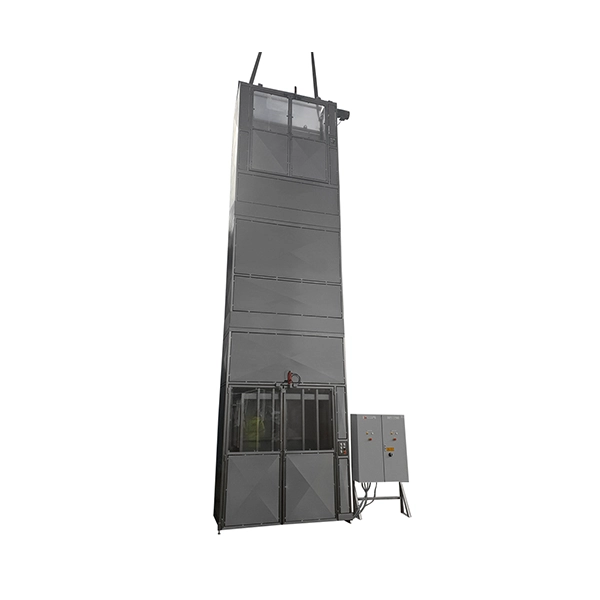

ISCA - Dump Buggy Elevator
Machine Number: 1191
Description
ISCA’S Dump Buggy Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option
Technical
-Capacity- 1102.3lbs (500kg)
-Lift height- 265.3in (6740mm)
-Overall height- 366.1in (9300mm)
-Platform size- 62.9in x 33.4in (1600mm x 850mm)
-Machine handing- Left or right hand available
-Maximum headroom- 374in (9500mm)
-Container Description- 2 Off Standard 200 Litre
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Output R.P.M.- 28 R.P.M.
-Ratio- 50:1
-Lift/Tension chain- 3/4″ duplex
-Tensile strength- 13227.7lbs (6000kg)
-Lift speed- 32.8ft/minute (10 meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
