ISCA - Dump Buggy Platform Elevator

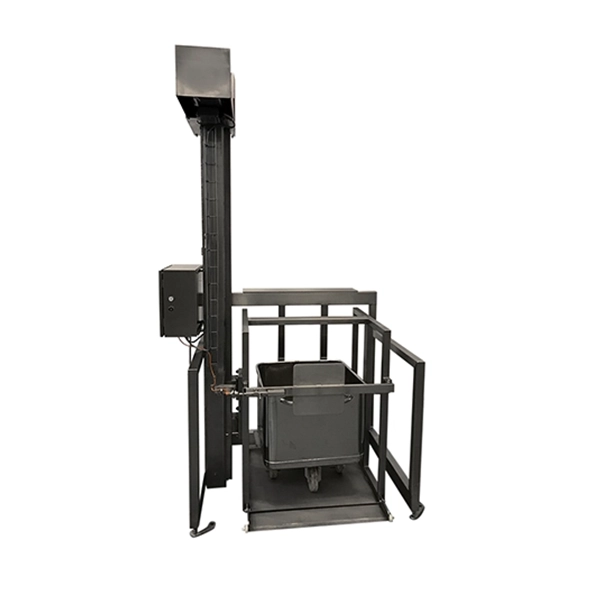

Dump Buggy Platform Elevator
Dump Buggy Platform Elevator

Machine Number: 1192

Request A Quote Sell Similar Item

Description

ISCA’S Dump Buggy Platform Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

Technical

-Safe work load- 881.8lbs (400kg)
-Lift height-  48.4in (1230mm)
-Overall height- 99.3in (2523mm)
-Machine handing- Left hand
-Maximum headroom- 118.1in (300mm)
-Container Description- 300 liter
-Base arrangement- Base frame bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Output R.P.M.- 28 R.P.M.
-Ratio- 50:1
-Load/Lift/Tension chain- 1″ simplex
-Tensile strength- 13227.7lbs (6000kg)
-Lift speed- 20.9/minute (6.4 meters/minute)



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
