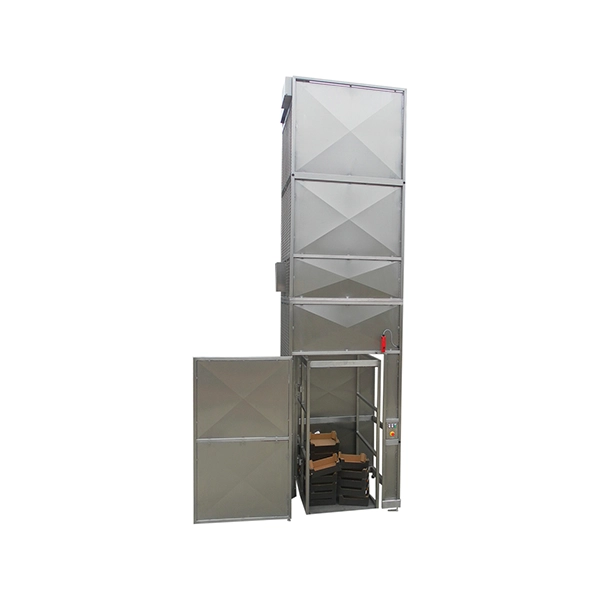

ISCA - Food Cart Elevator
Machine Number: 1193
description
ISCA’S Food Cart Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option
technical
-Capacity- 551.1lbs (250kg)
-Lift height- 132.2in (3360mm)
-Overall height- 218.8in (5560mm)
-Platform size- 47.2in x 35.4in x 70.8in H (1200 x 900mm W 1800mm H)
-Machine handing- Left hand
-Maximum headroom- 236.2in (6000mm)
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Output R.P.M.- 28 R.P.M.
-Ratio- 50:1
-Load/Lift/Tension chain- 3/4″ simplex
-Tensile strength- 6613.8lbs (3000kg)
-Lift speed- 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
