ISCA - Food Factory Goods Elevator

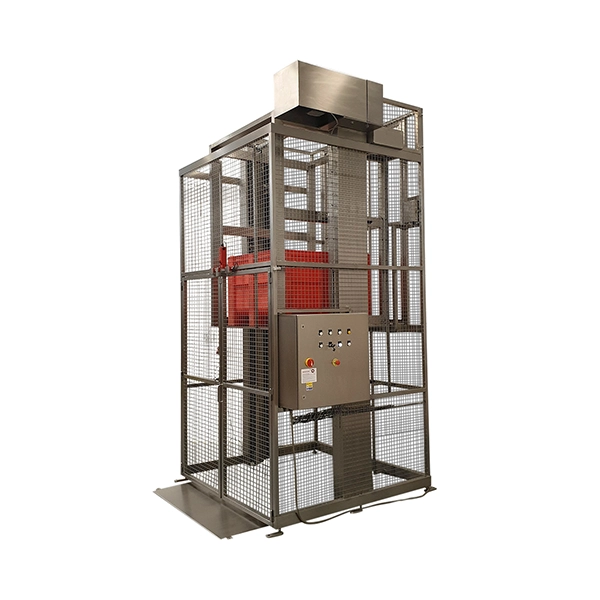

Food Factory Goods Elevator
Food Factory Goods Elevator

Machine Number: 1194

Request A Quote Sell Similar Item

description

ISCA’S Food Factory Goods Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option

technical

-Capacity- 2204.6lbs (1000kg)
-Lift height- 60.8in (1545mm)
-Overall Height- 151.5in (3850mm)
-Platform size- 51.1in x 39.3in  (1300mm x 1000mm)
-Machine Handing- Right hand
-Maximum Headroom- 157.4in (4000mm)
-Container description- 47.2in x 39.3in (1200mm x 1000mm) pallets
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Load/Lift/Tension Chain- 1″ simplex
-Tensile strength- 13227.7lbs, 6618.3lbs (6000kg, 3000kg)
-Tension chain- 3/4″ simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)









Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
