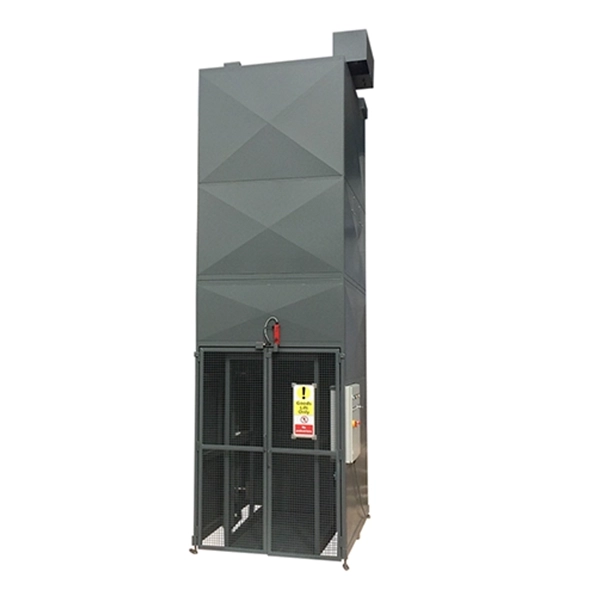

ISCA - Guarded Pallet Elevator
Machine Number: 1196
Description
ISCA’S Guarded Pallet Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option
Technical
-Capacity- 1102.3lbs (500kg)
-Lift height- 113.9in (2895mm)
-Overall height- 220.4in (5600mm)
-Platform size- 78.7in x 35.4in (2000 x 900mm)
-Machine handing- Left hand
-Maximum Headroom- In excess of 236.2in (6000mm)
-Container description- Maximum Load Size 66.9in x 31.4in x 31.4in (1700 X 800 X 800mm)
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Lift chain- 3/4″ duplex
-Tensile strength- 13227.7lbs (6000kg)
-Tension chain- 3/4″ simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
