ISCA - Heavy Duty Pallet Elevator

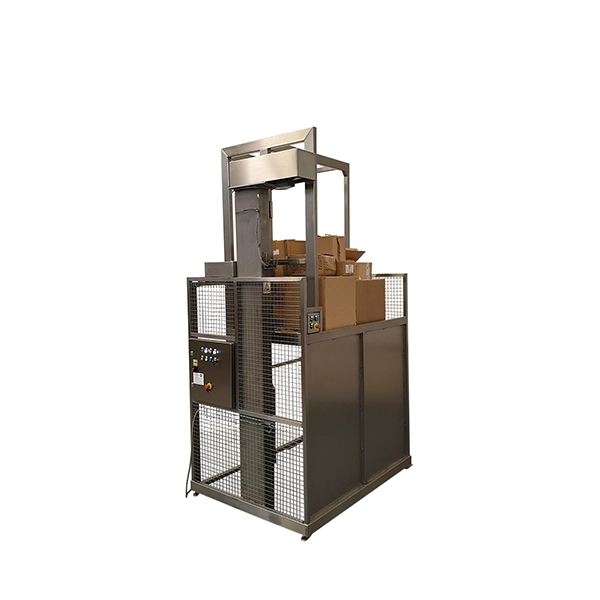

Heavy Duty Pallet Elevator
Heavy Duty Pallet Elevator

Machine Number: 1197

Request A Quote Sell Similar Item

Description

ISCA’S Heavy Duty Pallet Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option

Technical

-Capacity- 1322.7lbs (600kg)
-Lift height- 67.7in (1720mm)
-Overall height- 136.4in (3466mm)
-Platform size- 51.1in W x 43.3in Deep (1300mm W X 1100mm Deep)
-Machine handing- Right hand
-Maximum headroom- 157.4in (4000mm)
-Container description- Standard Pallet 47.2in x 39.3in (1200 X 1000mm)
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Output R.P.MP.- 28 R.P.M.
-Ratio- 50:1
-Load/Lift/Tension chain- 1″ simplex
-Tensile strength- 13227.7lbs (6000kg)
-Lift speed- 20.9ft/minute (6.4meters/minute)



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
