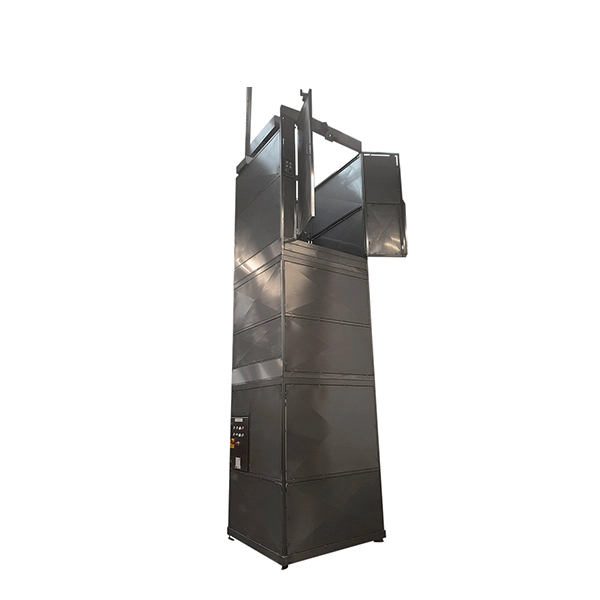

ISCA - Mezzanine Floor Elevator
Machine Number: 1030
Description
The Mezzanine Floor Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard model features:
-Suitable for industry standard pallets
-Lift height 14′ 7” (4500 mm)
-Lift capacity 880 lb (400 kg)
-Overall height 21′ 1” (6458 mm)
-Platform size 51.1 x 43.3” (1300 x 1100 mm)
-Machine handing – Right hand side
-Maximum headroom 22′ 9” (7000 mm)
-304 stainless steel
-Welded construction throughout
-Motor gearbox driven
-Solid panel perimeter guarding
Technical
-Controls/orientation – Right-hand side
-Stainless steel – AISI 304
-Lift height 14′ 7” (4500 mm)
-Lift capacity 880 lb (400 kg)
-Overall height 21′ 1” (6458 mm)
-Platform size 51.1 x 43.3” (1300 x 1100 mm)
-Machine handing – Right hand side
-Maximum headroom 22′ 9” (7000 mm)
-Base – Fixed base arrangement
-Mains supply as std – 480v 3PH 60Hz – Grounded (can be switched to 240v on site)
-Control circuit – 24V AC
-Electrical rating – IP65
-Drive Type – Braked motor gearbox + roller chain (simplex 3/4” chain)
-Lift speed – 33 ft/min (10 m/min)
Customization options (please ask on our inquiry form):
-ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
