ISCA - Pallet Elevator

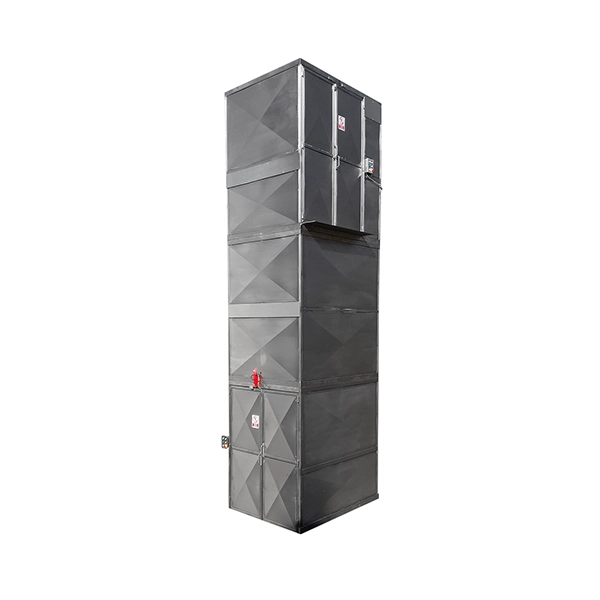

Pallet Elevator
Pallet Elevator

Machine Number: 1199

Request A Quote Sell Similar Item

Description

ISCA’S Pallet Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features:

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option

Technical

-Capacity- 2204.6lbs (1000kg)
-Lift height- 182in (4625mm)
-Overall height- 277.9in (7060mm)
-Platform size- 51.1 x 51.1in (1300 x 1300mm)
-Clear height in carriage- 78.7in (2000mm)
-Machine handing- Left hand side exiting to RHS
-Maximum headroom- 314.9in (8000mm)
-Container description- Pallet 42.7in x 39.3 x 66.9in H (1200 x 1000 x 1700mm H)
-Base arrangement- Bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Lift chain- 1″ simplex
-Tensile strength- 13227.7lbs, 6613.8lbs (6000kg, 3000kg)
-Tension chain- 3/4″ simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
