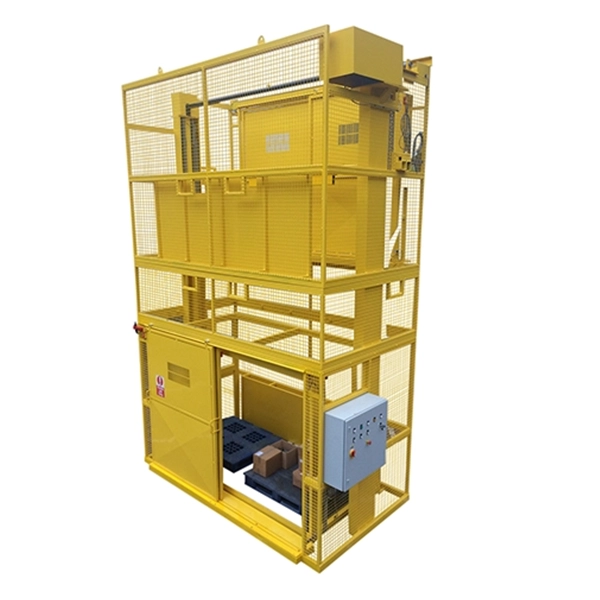

ISCA - Twin Pallet Elevator
Machine Number: 1201
Description
ISCA’S Twin Pallet Elevator is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.
Standard Model Features:
-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Goods Lifts for Pallets, Bins, Drums etc
-Lift Heights – No Maximum
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard Option
Technical
-Capacity- 3306.9lbs (1500kg)
-Lift height- 129.9in (3300mm)
-Overall height- 213.4in (5421mm)
-Platform size- 55.1 x 51.1in (1400 x 1400mm) FOR EACH PALLET POSITION
-Machine handing- Right hand
-Maximum headroom- 236.2in (6000mm)
-Container description- Standard pallet 47.2in x 39.3in (1200 x 1000mm)
-Base arrangement- 24Vac
-Control circuit- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Lift chain- 1″ duplex
-Tensile strength- 26455.4lbs, 13227.7lbs (12000kg, 6000kg)
-Tension chain- 1″ simplex
-Lift speed- 20.9ft/minute (6.4meters/minute)
Customization options (please ask on our inquiry form):
ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
