ISCA - Tobacco Box Dumper

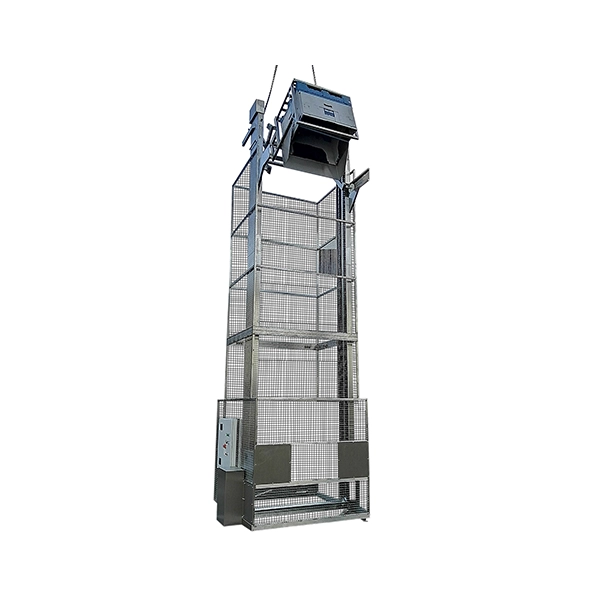

Tobacco Box Dumper
Tobacco Box Dumper

Machine Number: 1186

Request A Quote Sell Similar Item

Description

ISCA’S Tobacco Box Dumper is designed for the stringent requirements of hygiene-conscious facilities.
The technical data listed highlights our most popular, industry-proven standard model, and is to be used as a starting point reference only.
We can further customize any other factor specific to your exact product, process, and building.



Standard Model Features

-Stainless Steel or Mild Steel Construction
-Food/Pharmaceutical Industry Specification
-Standard and Custom Design Machines
-Fully TIG/MIG Welded Construction
-Lifts for Bins, Drums, Palletainers etc
-Tip Heights up to Customers’ Requirements
-Lifting Capacity – No Maximum
-Chain Drive
-Fully Enclosed Safety Guard

Technical

-Capacity- 551.1lbs (250kg)
-Tipping height- 265.7in (6750mm)
-Tipping angle- 160 degrees maximum
-Overall height- 335.6in (8526mm)
-Machine handing- Right hand
-Maximum headroom- 344.4in (8750mm)
-Tipping chute- Yes, fitted to lift carriage
-Container description- Tobacco Box 46.2in x 38.9in x 38.9in (1175mm x 989mm x 990mm High)
-Base arrangement- bolted to the floor
-Control circuit- 24Vac
-Electrical rating- IP65
-Limit switches- Telemecanique
-Gearbox details- SEW Eurodrive
-Lift chain- 2″ simplex
-Tensile chain- 55115.5lbs (25000kg) per chain
-Lift speed- Adjustable Via Inverter To Give



Customization options (please ask on our inquiry form):

ISCA can assist you in lifting and dumping any container; at any height, into any vessel, safely and efficiently.
We have ‘off the shelf’ machines, that can be further customized, or we can create a new solution for your specific needs.
